model: A455AX
ALIGNMENT FOUR-POST LIFT
With great performance, this is the perfect lift to meet the needs of garage and shop owners.
  • Features
  • Specifiction
  • Detailed Image

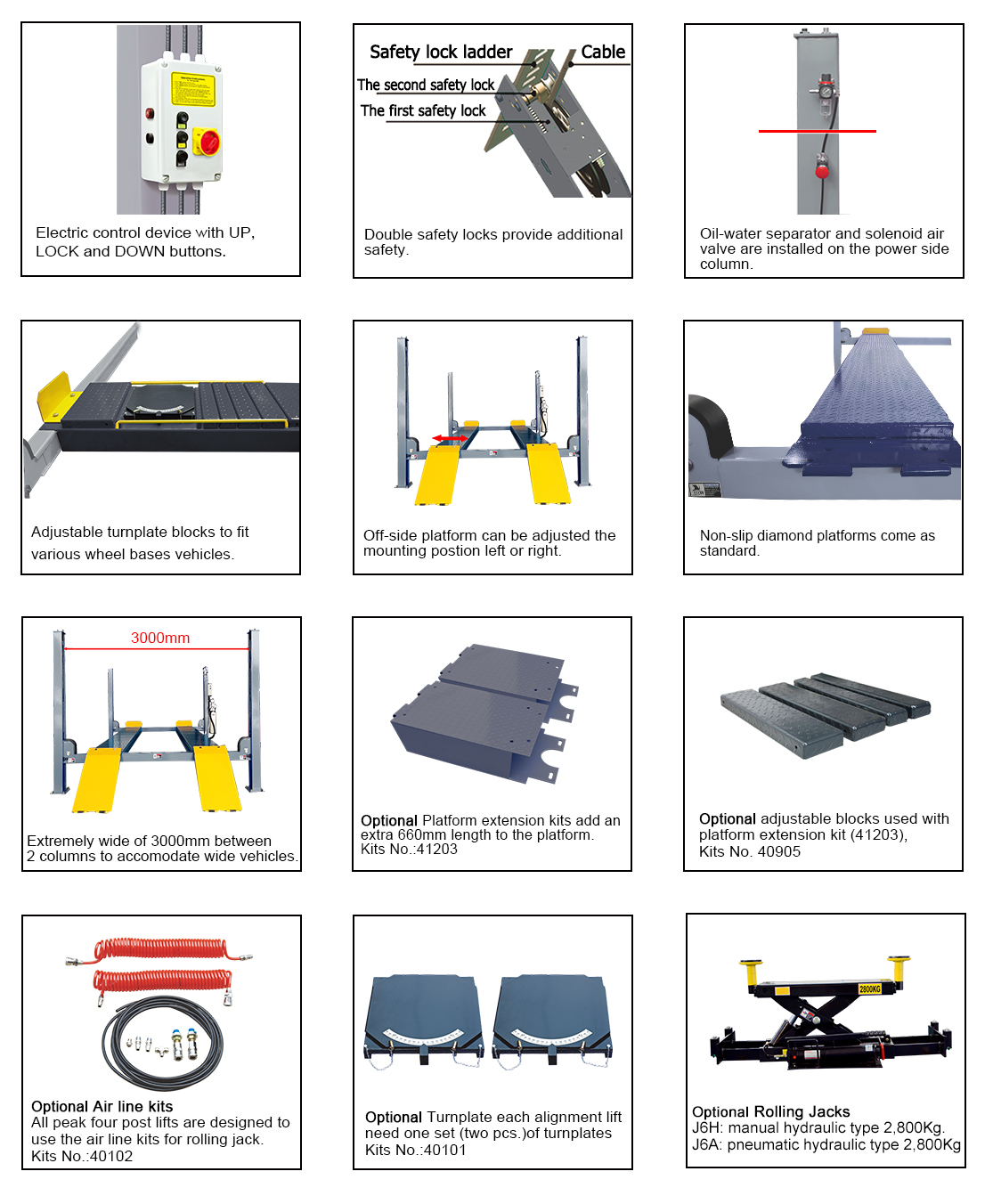

Detailed Product Information


Electro-air control operation system.

Mechanical self-lock and air-drived safety release.

Electrical hydraulic power system, cable drived.

Skid proof diamond platform.

Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 1100mm and maximum distance is 1300mm.
Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by a second safety device.

Adjustable turnplate positions to fit the different wheel base.

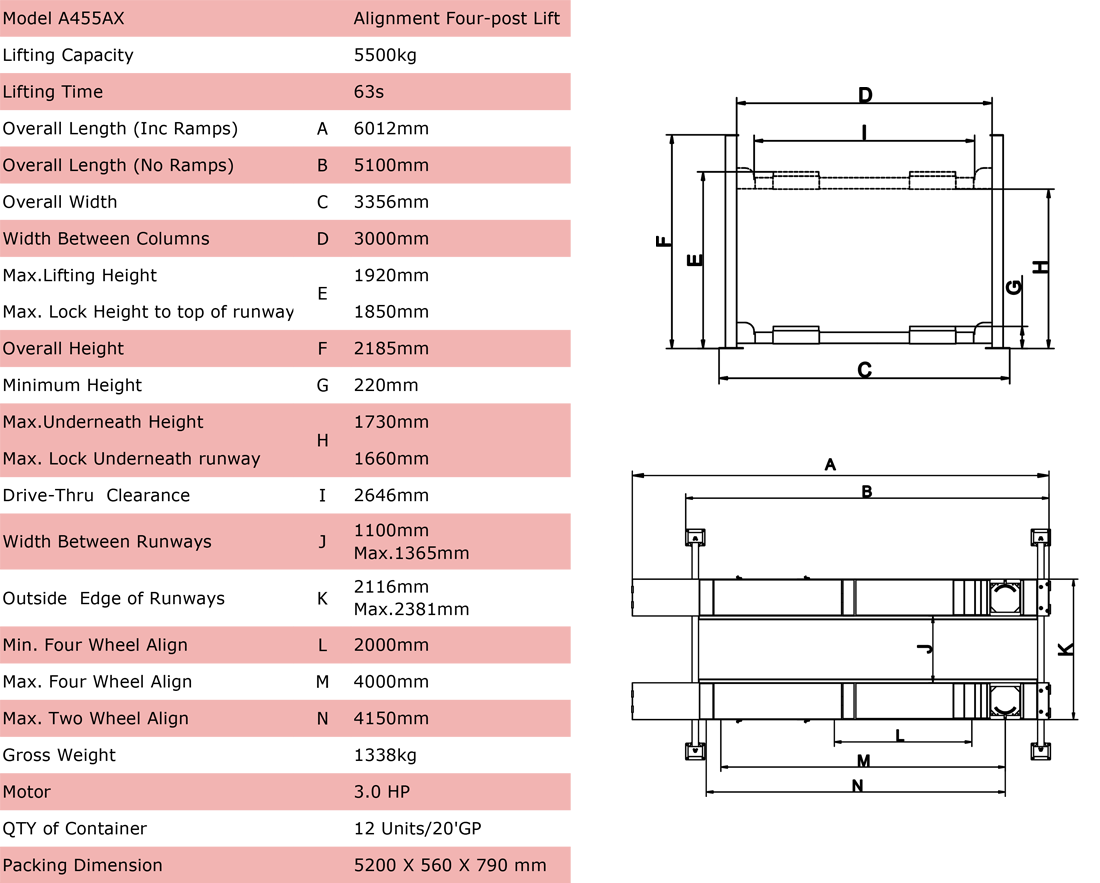

Model A455AX
Lifting Capacity 5500kg
Lifting Time 63S
A:Overall Length (Inc Ramps) 6012mm
B:Overall Length (No Ramps) 5100mm
C:Overall Width 3356mm
D:Width Between Columns 3000mm
E:Max.Lifting Height 1915mm
F:Overall Height 2185mm
G:Minmum Height 220mm
H:Max. underneath height 1724mm
I:Drive-Thru clearance 2646mm
J:Width between runways 1100mm / Max.1365mm
K:Outside edge of runways 2116mm / Max.2381mm
L:Min. Four Wheel Align 2000mm
M:Max. Four Wheel Align 3960mm
N:Max. Two Wheel Align 4100mm
Gross Weight 1331Kg
Motor 4.0 HP
