model: A445A
ALIGNMENT FOUR-POST LIFT
With great performance, this is the perfect lift to meet the needs of garage and shop owners.
  • Features
  • Specifiction
  • Detailed Image

Detailed Product Information

• Electro-air control operation system.

• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable drived.
• Skid proof diamond platform.
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 1100mm and maximum distance is 1365mm.
• Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by a second safety device.

Adjustable turnplate positions to fit the different wheel base.

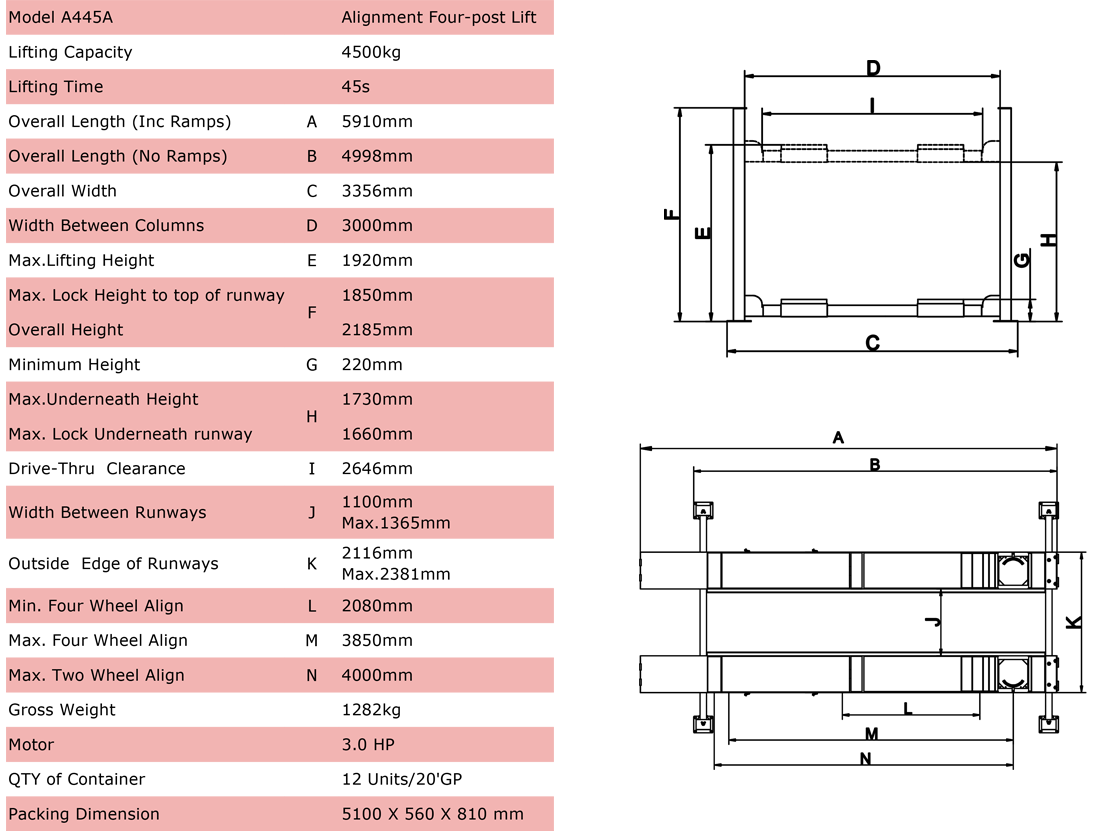

Model A445A
Lifting Capacity 4500kg
Lifting Time 45S
A:Overall Length (Inc Ramps) 5910mm
B:Overall Length (No Ramps) 4998mm
C:Overall Width 3356mm
D:Width Between Columns 3000mm
E:Max.Lifting Height 1915mm
F:Overall Height 2185mm
G:Minmum Height 220mm
H:Max. underneath height 1724mm
I:Drive-Thru clearance 2646mm
J:Width between runways 1100mm / Max.1365mm
K:Outside edge of runways 2116mm / Max.2381mm
L:Min. Four Wheel Align 2080mm
M:Max. Four Wheel Align 3850mm
N:Max. Two Wheel Align 4000mm
Gross Weight 1279Kg
Motor 3.0 HP
